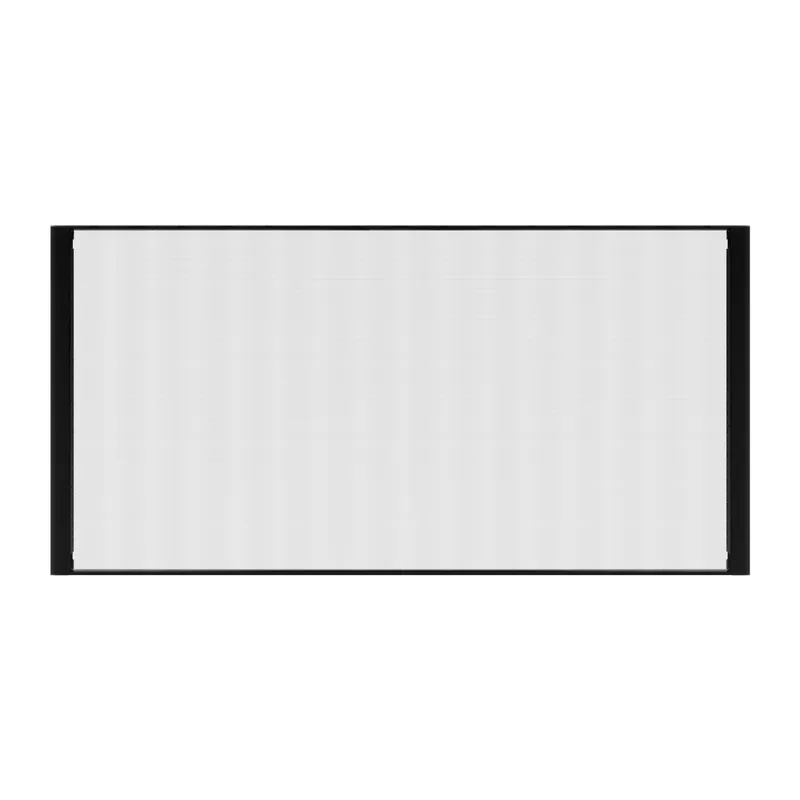

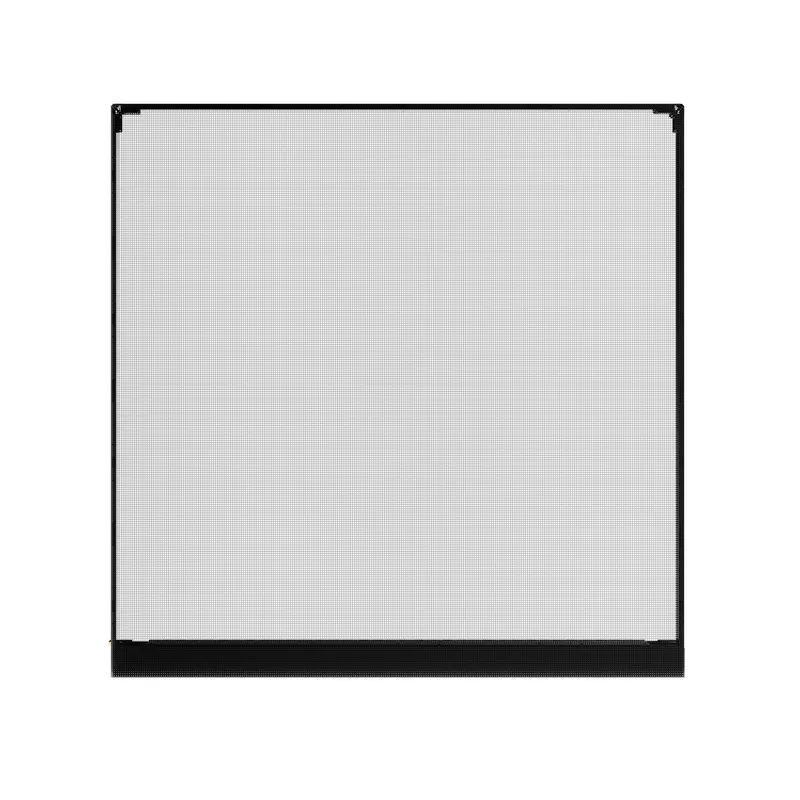

S Series – LED Screen Cabinet

Modular internal cabinet structure allows easy independent maintenance. Lightweight and flexible design adapts to various glass curtain wall configurations.

Key Parameter

Pixel pitch (mm)	P6.25/P10
Profile Dimension (mm) (w*h)	960×1000/1000×1000
Transparency Rate	92%~95%
Brightness(cd/m²)	3000~7000

Product Features

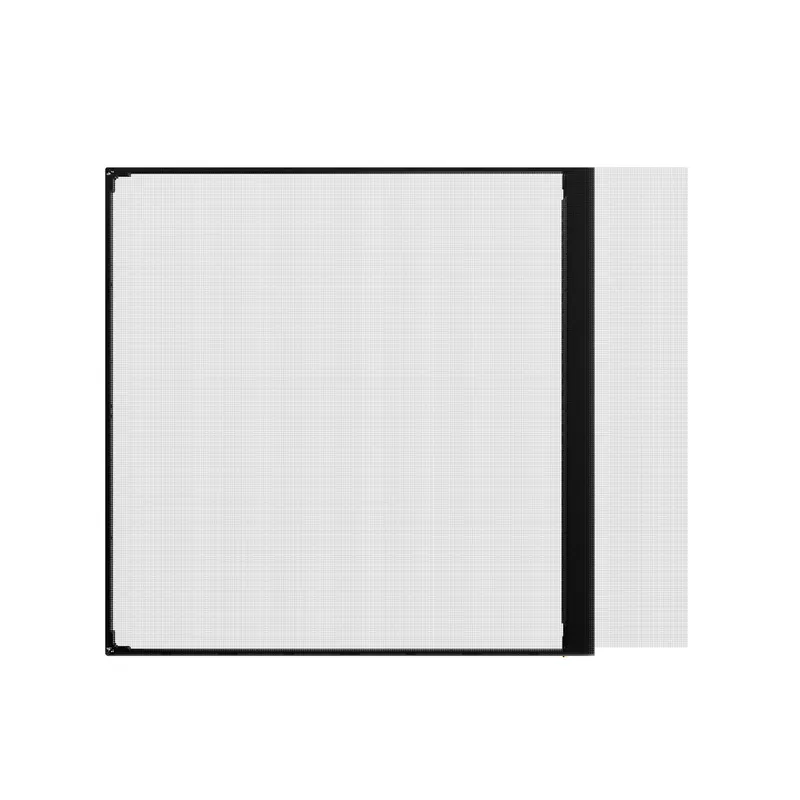

Cabinet personnalisable

Modular design adapts to various glazing framework structures

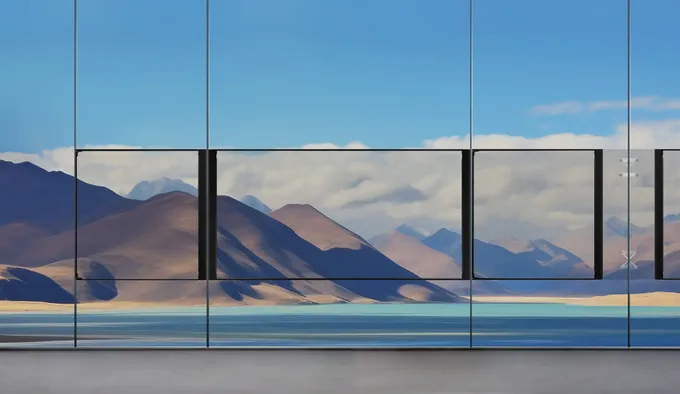

Ultra-haute transparence

Visual transparency exceeding 92% with seamless full-screen invisibility

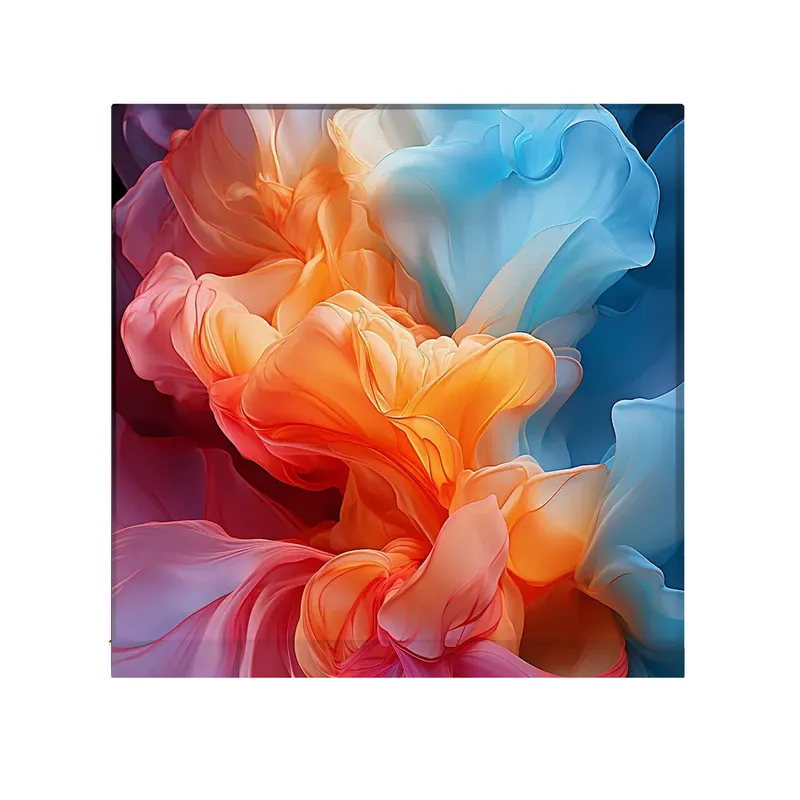

Qualité d'affichage HD

Horizontal and vertical pixels equal spacing, Light/Driver Integrated, Picture Grayscale 16 bit.

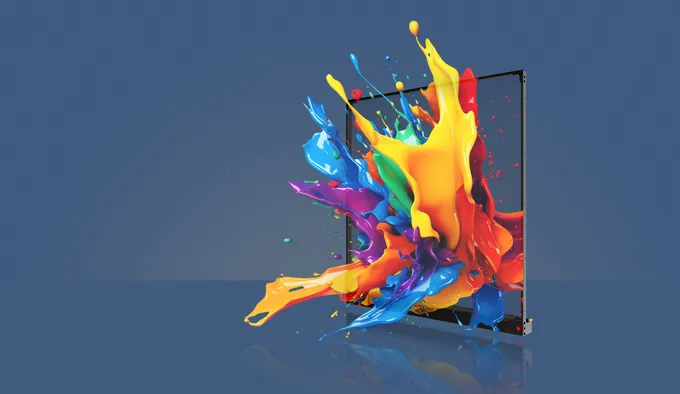

Spatial Floating lmage

3D holographic, spatial floating image

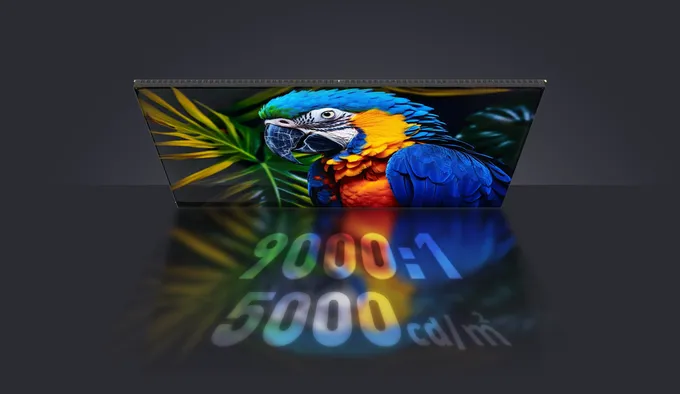

Luminosité et contraste élevés

High brightness 5000cd/㎡
High contrast ratio 9000:1

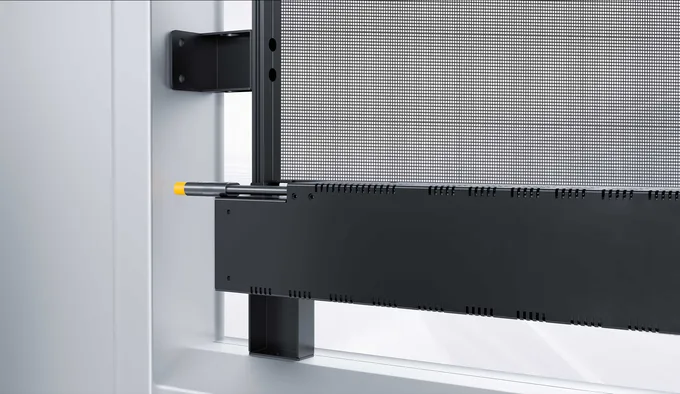

Suspended Mounting Method

The cabinet is mounted onto the curtain wall framework via connecting plates

Product Advantages

Modular Design

The cabinet’s internal structure is fully modular, allowing independent maintenance of each section without dismantling the entire system—ideal for large glass curtain wall installations.

Slim & Highly Transparent

Lightweight structure with exceptional transparency preserves the building’s architectural aesthetics and natural lighting, perfectly suited for glass curtain walls.

Easy Maintenance

Supports both front and rear servicing, enabling quick access for upkeep even when installed on expansive glass facades.

Glass Curtain Wall Compatibility

Engineered to integrate seamlessly with glass curtain wall structures, maintaining building integrity and natural sightlines while delivering vibrant LED visuals.

Specifications

Model	*S6-10001000**	*S10-10001000**
LED Specification	2121	2727
Pixel Pitch (mm) (horizontal/vertical)	6.25-6.25	10.0-10.0
Pixel Density (dot/m²)	25600	10000
Transparency Rate	95%	95%
*Display Dimension(mm) (wh)**	1000*1000	960*1000
*Profile Dimension (mm)(wh)**	1000*1000	960*1000
*Resolution (dot) (wh)**	160*160	96*100
Brightness(cd/m²)	≥5000（White Body）	≥7000（White Body）
Maximum Power Consumption (w/m²)	552	680
Average Power Consumption (w/m²)	221	280
Weight(Kg/pcs)	6	8
Weight of Matching Power Supply Box (Kg/pcs)	No External Power Supply Box	No External Power Supply Box
Color Temperature(K)	3000~10000	3000~10000
Scanning Mode	Static Driving (Single Pixel Single Control)	Static Driving (Single Pixel Single Control)
Frame Rate（Hz）	60~120	60~120
Lifespan	≥ 100,000.00 hours	≥ 100,000.00 hours
Pixel Configuration	16bit	16bit
Input Voltage	AC100~240V 50/60Hz	AC100~240V 50/60Hz
Working Voltage for Module	DC4.2V ±0.2V	DC4.2V ±0.2V
Working Temperature	Temperature -20℃ ~50℃	Temperature -20℃ ~50℃
Working Humidity	Humidity 20%RH ~ 85%RH (Without Condensation)	Humidity 20%RH ~ 85%RH (Without Condensation)
Storage Temperature	Temperature -20℃ ~60℃	Temperature -20℃ ~60℃
Storage Humidity	Humidity 10%RH ~ 85%RH (Without Condensation)	Humidity 10%RH ~ 85%RH (Without Condensation)
Protection Degree	IP20	IP20
Installation Method	Fixed Installation、Hanging Up	Fixed Installation、Hanging Up
Installation Environment	Indoor	Indoor
Packing Way	Pearl Cotton+Wooden Box/Flight Case	Pearl Cotton+Wooden Box/Flight Case
Maintenance Method	Back-side Service Access	Back-side Service Access
Module Packing Specification (16pcs per box)(mm)	Single Cabinet Packaging	Single Cabinet Packaging
Power Box Packing Specification (30pcs per box)(mm)	L1000W960H55mm	L1000W960H55mm

Statement: The relevant parameters in the table are subject to real-time update, and the data is for reference only. Upgrade will be made without further notice.
