Series F
Key Parameter
| Pixel Pitch (mm) | P3.9/P6.25 |
|---|---|
| Profile Dimension (mm) (w*h) | 5250×3016/4250×2416/3500×2016/2500×1508 |
| Transparency Rate | 92% |
| Brightness(cd/m²) | 3000~5000 |
Product advantages
Gapless Panel Alignment
Seamless infinity screen: no visible borders side-to-side
HD Display Quality
Horizontal and vertical pixels equal spacing,
light/driver integrated, grayscale 16bit
Integrated Stand-Alone Modules
Integrated standalone modules with tool-less installation
Multi-Angle Stackable Configuration
Cabinet Cutting, 45° miter cut, Dual-beveled edge, Single-chamfered profile, L-corner interlock, Convex radius tiling
Spatial Floating lmage
3D holographic, spatial floating image
High Brightness and Contrast
High brightness 5000cd/㎡
High contrast ratio 9000:1
High contrast ratio 9000:1
Rear-Serviceable Module Design
Rear-serviceable module design with minimal maintenance complexity
Ultra-lightweight and Thin Profile
Ultra-Slim 66mm design

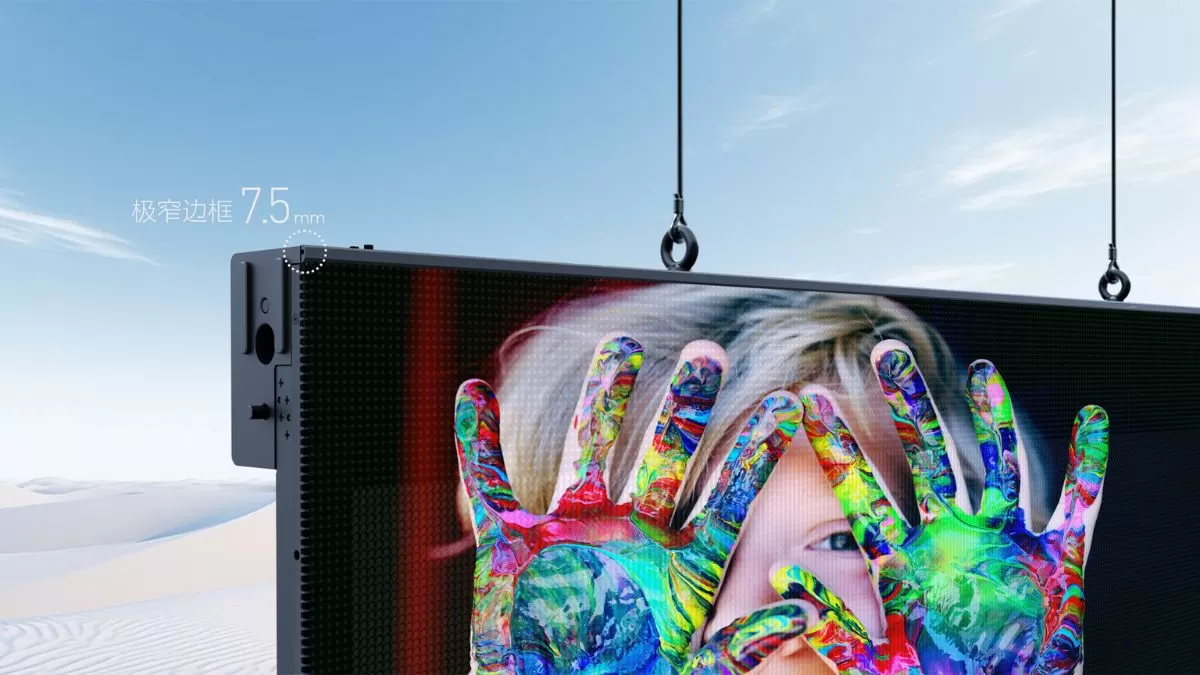

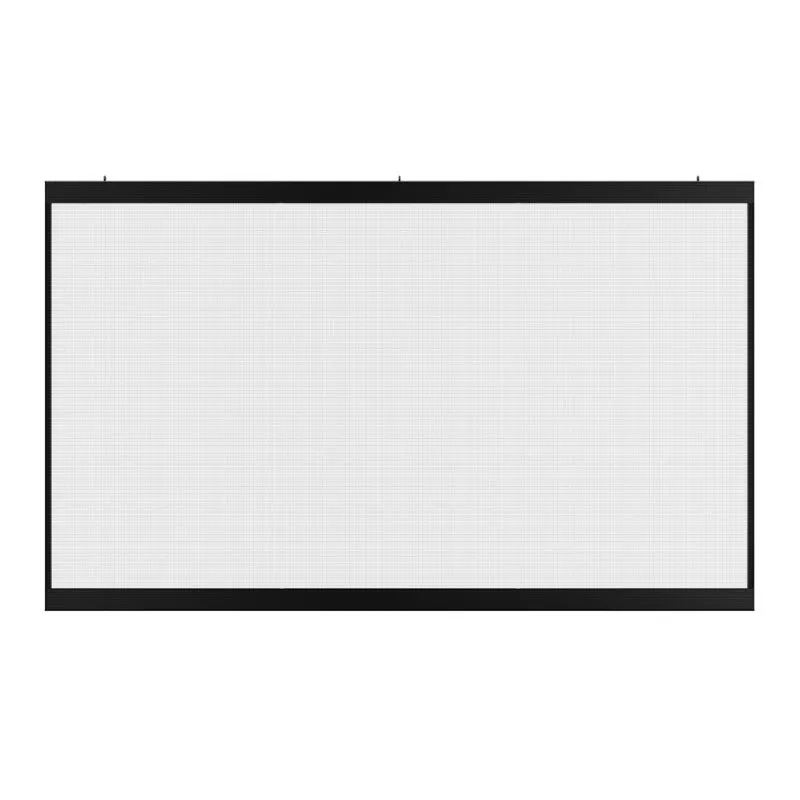

Edge-to-Edge Screen
Full-screen display with ultra-narrow bezels, featuring single-side top and bottom bezels of only 7.5mm each.

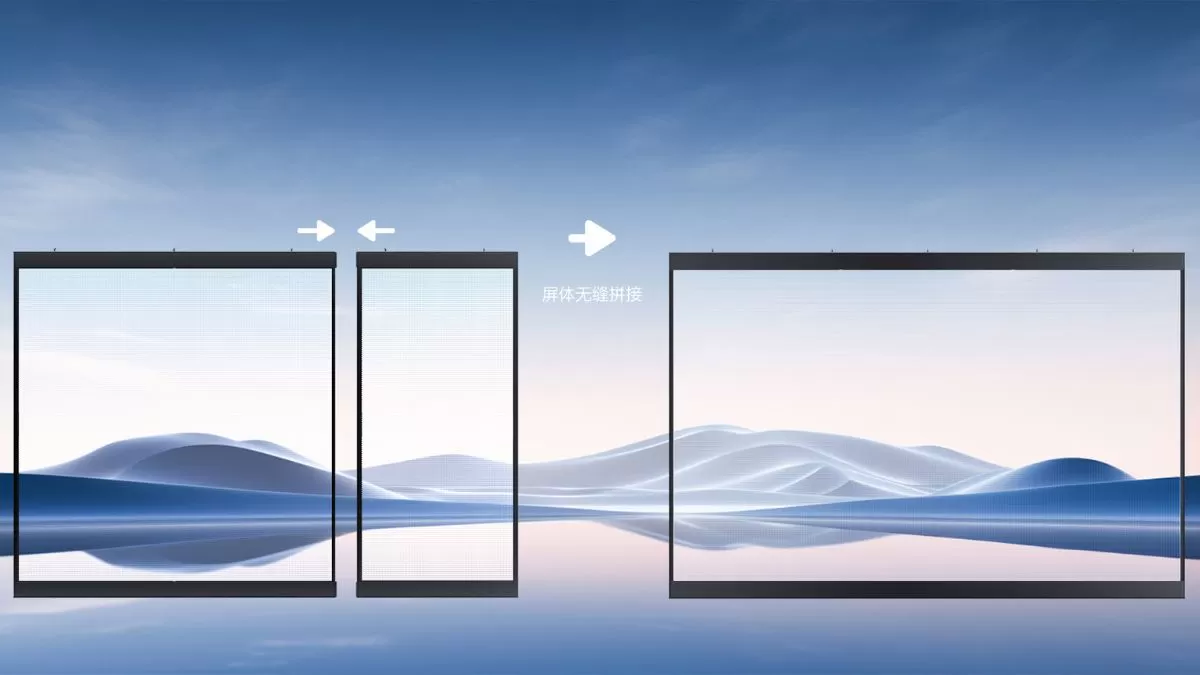

Gapless Panel Alignment
Seamless infinity screen: no visible borders side-to-side

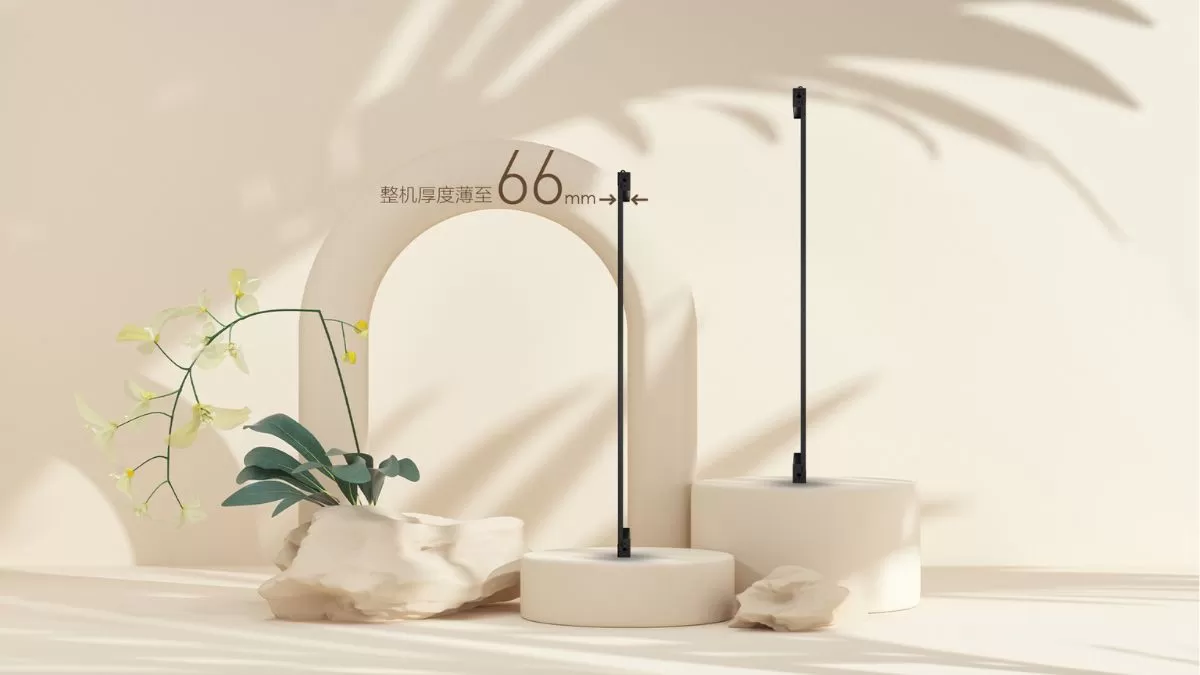

Slim-profile Design
Slim design with a thickness of just 66mm.
Modular independent design
The module adopts an independent modular design with the receiving card installed on the LED panel, offering wide applicability and flexible adaptability. The total thickness of the module, including the handle, is 47mm, while the thickness excluding the handle is 35mm.

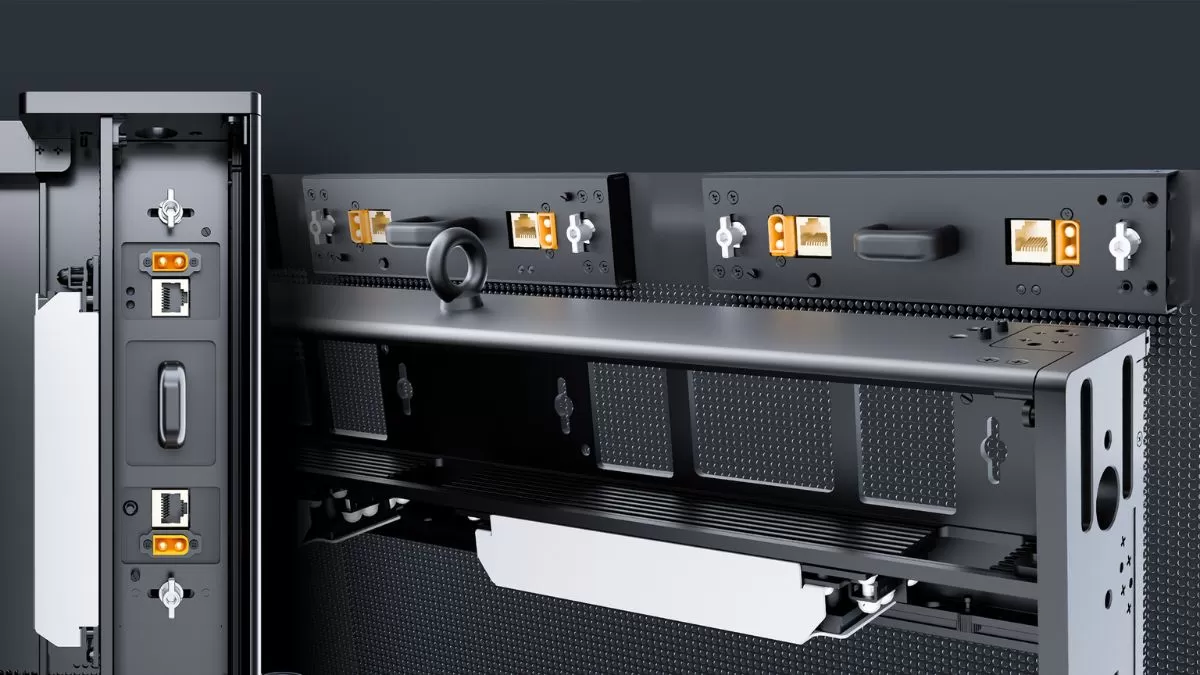

Quickly-lock rear access for easy maintenancenel
The module features quick-lock fasteners for rapid rear maintenance and installation, with tool-free plug-and-play connections for both network and DC power cables. The rear cover can be quickly opened and closed, secured by hand-tightened screws.

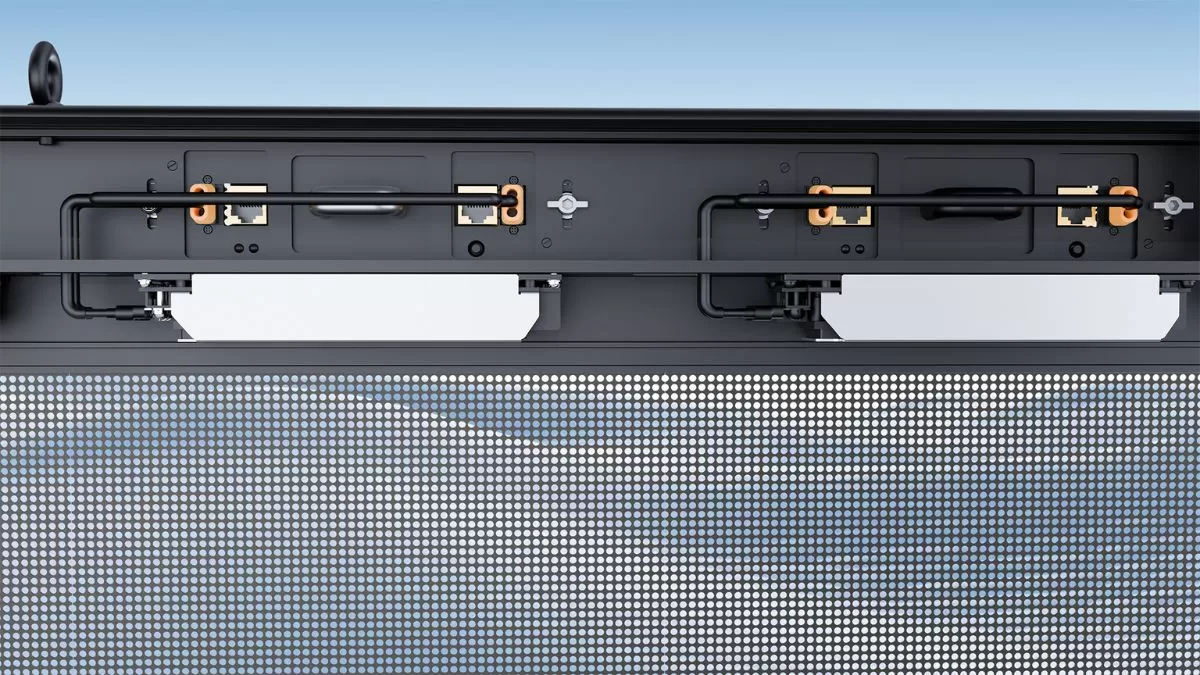

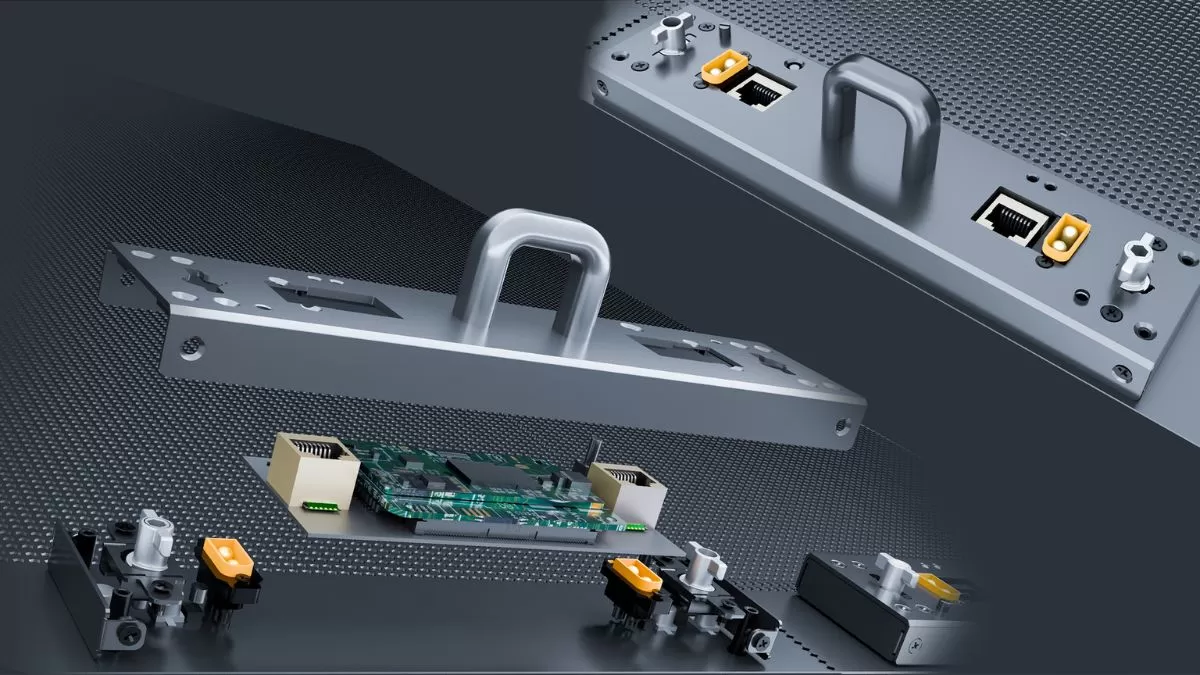

Seamless lnlet, Effortless Upkeep
The receiving card is directly mounted on the LED panel, eliminating ribbon cables. Integrated power and network wiring, with left/right cascading connections. Clean and maintenance-friendly design.All interconnecting cables between the upper and lower crossbeams are neatly concealed within the vertical beams.
Specification parameters
| Model | F3 | F6 | ||||||
| Screen Dimension (mm) (w*h) | 238 | 192 | 159 | 115 | 238 | 192 | 159 | 115 |
| Display Dimension(mm) (w*h) | 5250*3000 | 4250*2400 | 3500*2000 | 2500*1500 | 5250*3000 | 4250*2400 | 3500*2000 | 2500*1500 |
| Profile Dimension (mm)(w*h) | 5250*3016*66 | 4250*2416*66 | 3500*2016*66 | 2500*1508*66 | 5250*3016*66 | 4250*2416*66 | 3500*2016*66 | 2500*1508*66 |
| Resolution (dot) (w*h) | 1344*768 | 1088*614 | 896*512 | 640*384 | 840*480 | 680*384 | 560*320 | 400*240 |
| Module Dimensions (mm) (w*h) | 250*1000/250*1200/250*1500/250*2000 | 250*1000/250*1200/250*1500/250*2000 | ||||||
| Module Resolution (dot) (w*h) | 64*256/64*307/64*384/64*512 | 40*160/40*192/40*240/40*320 | ||||||
| LED Specification | 2121 | 2121 | ||||||
| Pixel Pitch (mm) (horizontal/vertical) | 3.91-3.91 | 6.25-6.25 | ||||||
| Pixel Density (dot/m²) | 65536 | 25600 | ||||||
| Transparency Rate | 92% | 95% | ||||||
| Brightness(cd/m²) | ≥3000（Black Light） ≥5000（White Light） |
≥5000（White Light） | ||||||
| Maximum Power Consumption (w/m²) | 865 | 865 | ||||||
| Average Power Consumption (w/m²) | 330 | 330 | ||||||
| Color Temperature(K) | 3000~10000 | 3000~10000 | ||||||
| Scanning Mode | Static Driving (Single Pixel Single Control) | Static Driving (Single Pixel Single Control) | ||||||
| Frame Rate（Hz） | 60~120 | 60~120 | ||||||
| Encapsulation Type | Light Board & Driving Board Integrated | Light Board & Driving Board Integrated | ||||||
| Lifespan | ≥ 100,000.00 hours | ≥ 100,000.00 hours | ||||||
| Pixel Configuration | 16bit | 16bit | ||||||
| Input Voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz | ||||||
| Working Voltage for Module | DC4.2V ±0.2V | DC4.2V ±0.2V | ||||||
| Working Temperature | Temperature -20℃ ~50℃ | Temperature -20℃ ~50℃ | ||||||
| Working Humidity | Humidity 20% RH ~ 85% RH (Without Condensation) | Humidity 20% RH ~ 85% RH (Without Condensation) | ||||||
| Storage Temperature | Temperature -20℃ ~60℃ | Temperature -20℃ ~60℃ | ||||||
| Storage Humidity | Humidity 10% RH ~ 85% RH (Without Condensation) | Humidity 10% RH ~ 85% RH (Without Condensation) | ||||||
| Protection Degree | IP20 | IP20 | ||||||
| Installation Method | Hanging Up | Hanging Up | ||||||
| Installation Environment | Indoor | Indoor | ||||||
| Packing Way | Pearl Cotton+Wooden Box/Flight Case | Pearl Cotton+Wooden Box/Flight Case | ||||||
| Statement: The relevant parameters in the table are subject to real-time update, and the data is for reference only. Upgrade will be made without further notice. | ||||||||

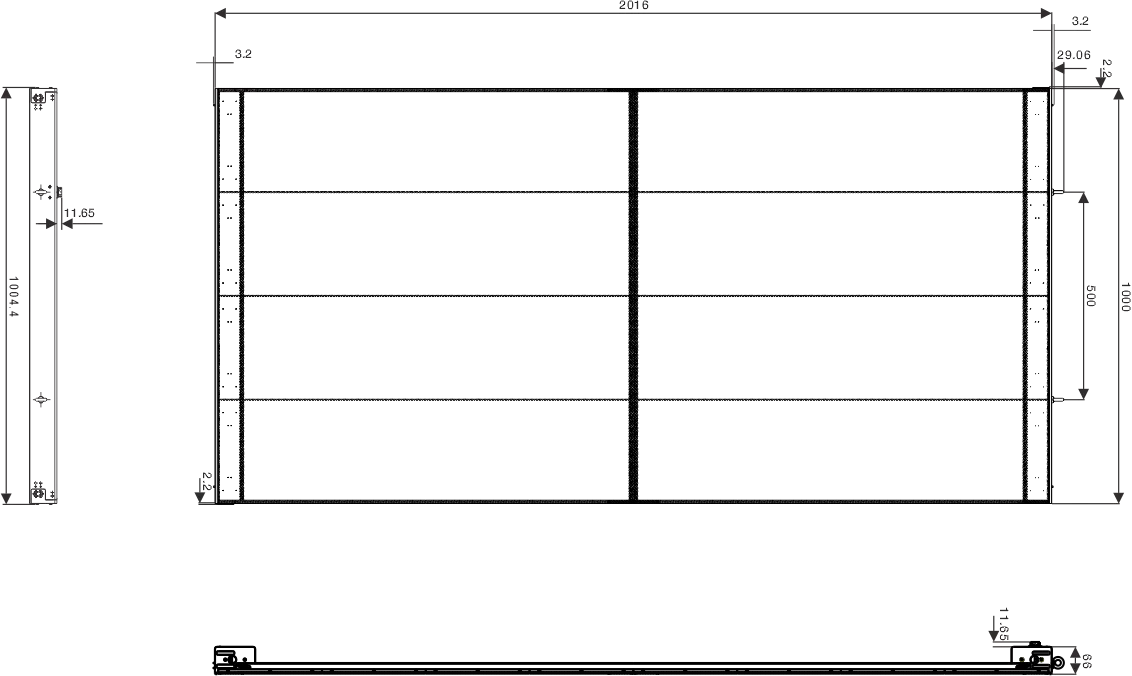

Product dimension table
Product Topology
