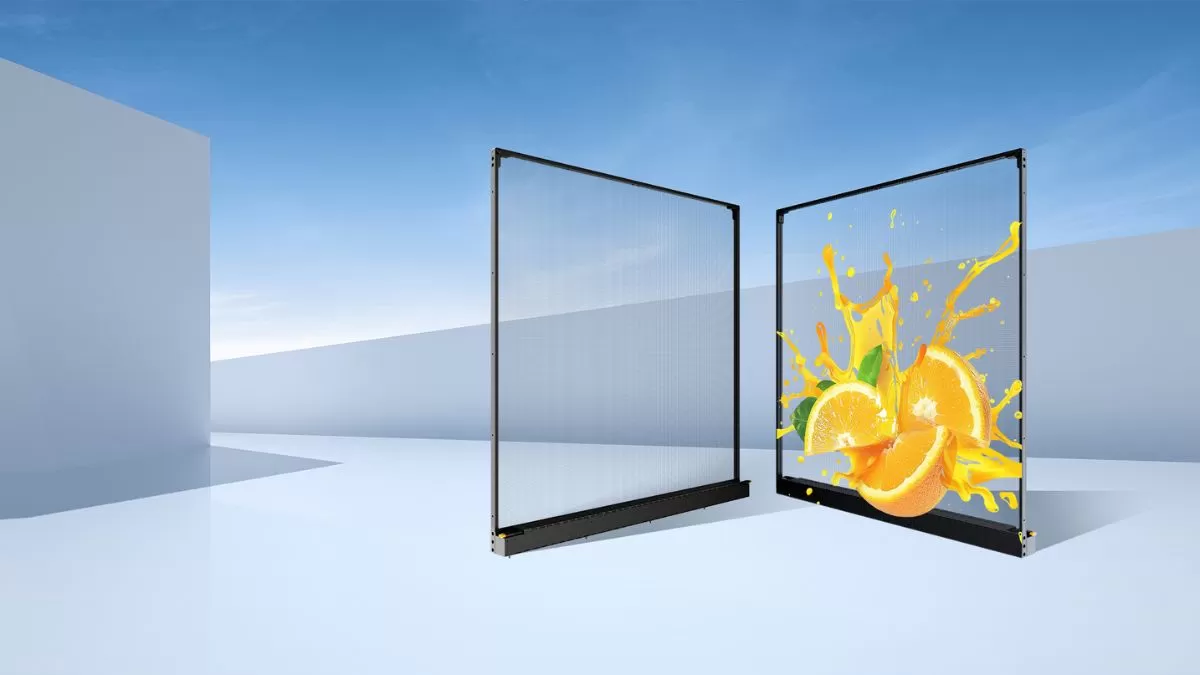

Series S
Key Parameter
| Pixel Pitch (mm) | P3.9/P6.25/P10 |
|---|---|
| Display Dimension (mm) (w*h) | 960×1000/1000×1000 |
| Transparency Rate | 90%~95% |
| Brightness(cd/m²) | 3000~7000 |
Product advantages
Customizable Cabinet
Modular design adapts to various glazing framework structures
Ultra-high Transparency
Visual transparency exceeding 92% with seamless full-screen invisibility
HD Display Quality
Horizontal and vertical pixels equal spacing, light/driver integrated, grayscale 16bit
Spatial Floating lmage
3D holographic, spatial floating image
High Brightness and Contrast
High brightness 5000cd/㎡
High contrast ratio 9000:1
High contrast ratio 9000:1
Suspended Mounting Method
The cabinet is mounted onto the curtain wall framework via connecting plates

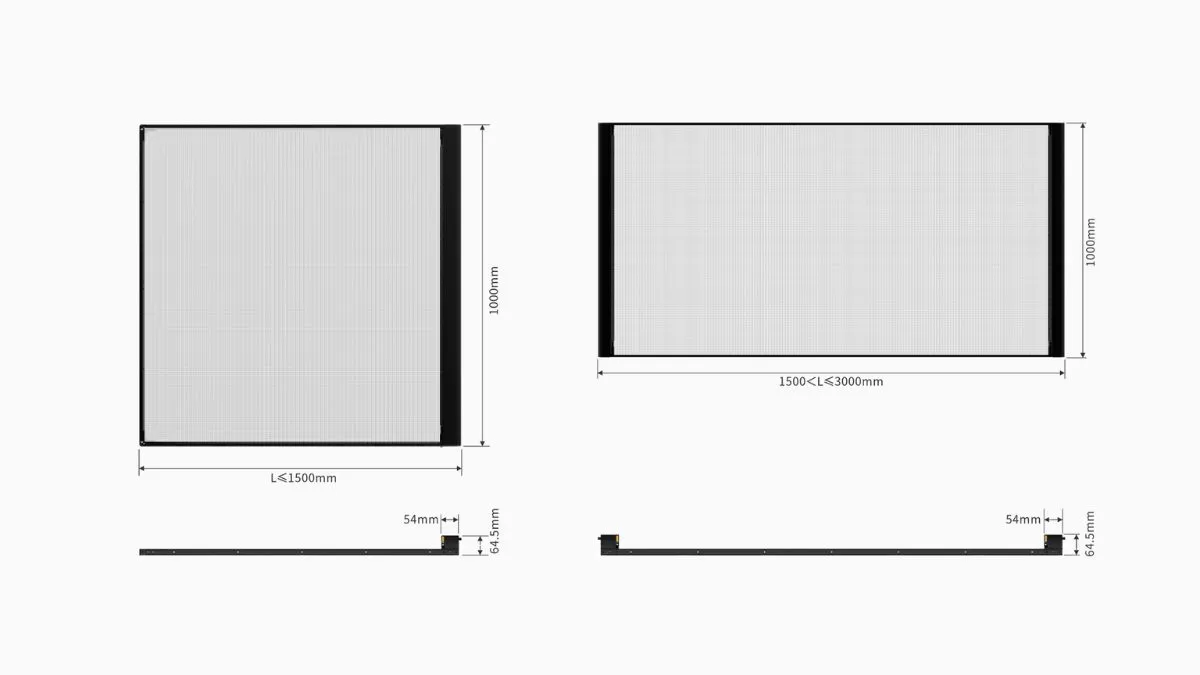

Custom cabinet dimension specifications
Single-sided power box dimensions：L≤1500mm，
Dual-sided power box dimensions：1500mm≤L≤3000mm

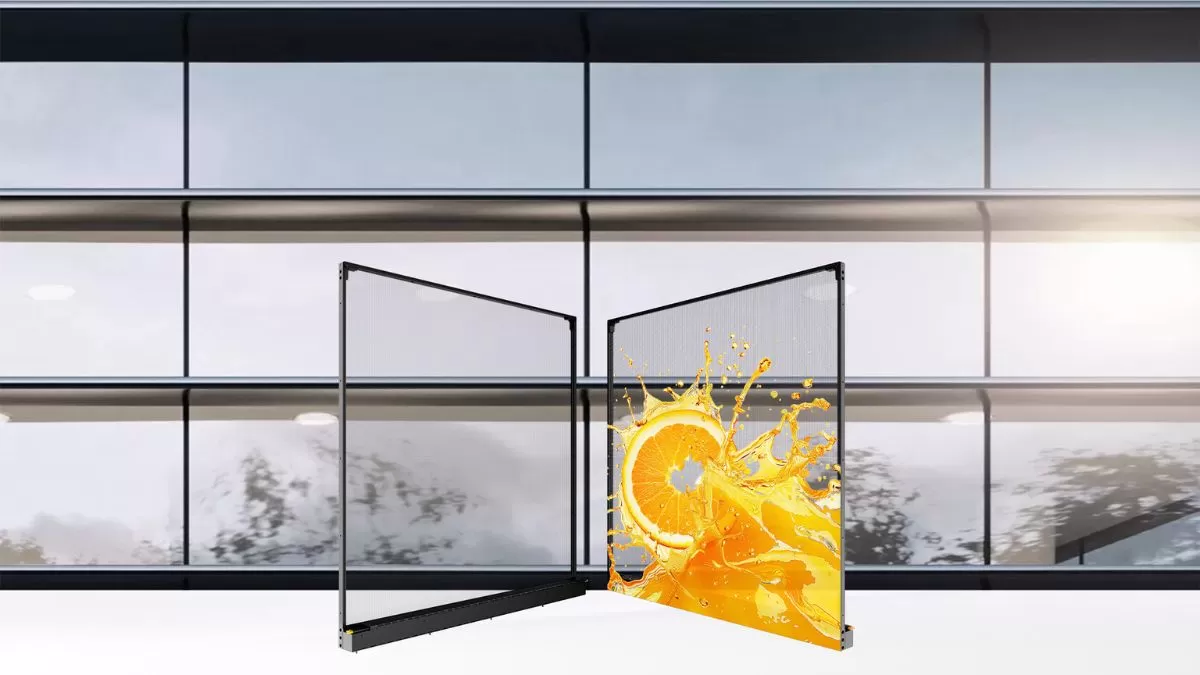

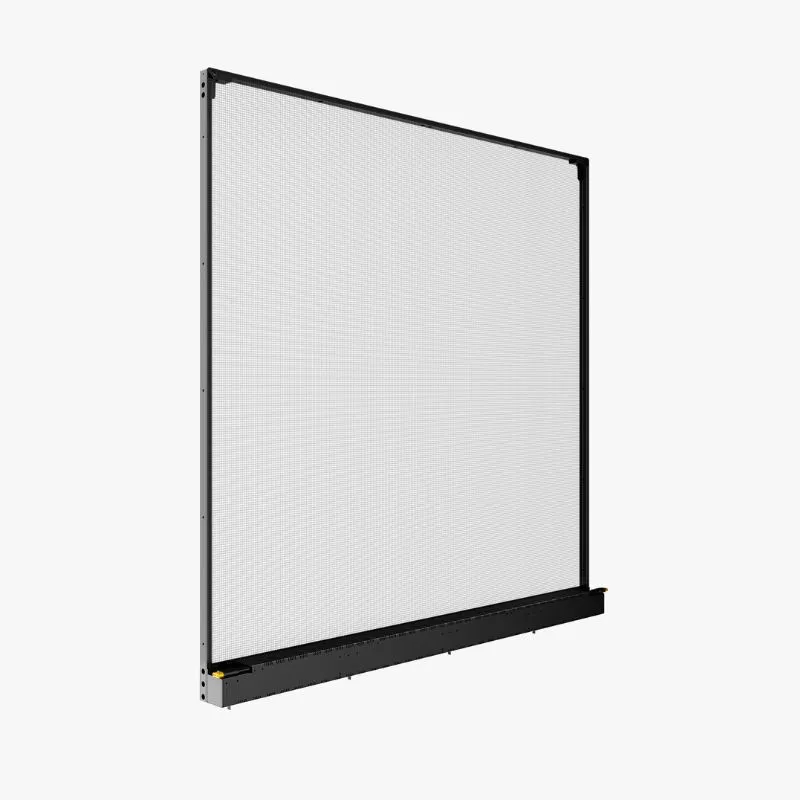

LED transparent display standard cabinet - a cost-effective customizable solution for glass curtain walls.
Full-screen transparent and invisible, with no obstruction to vision or natural light.

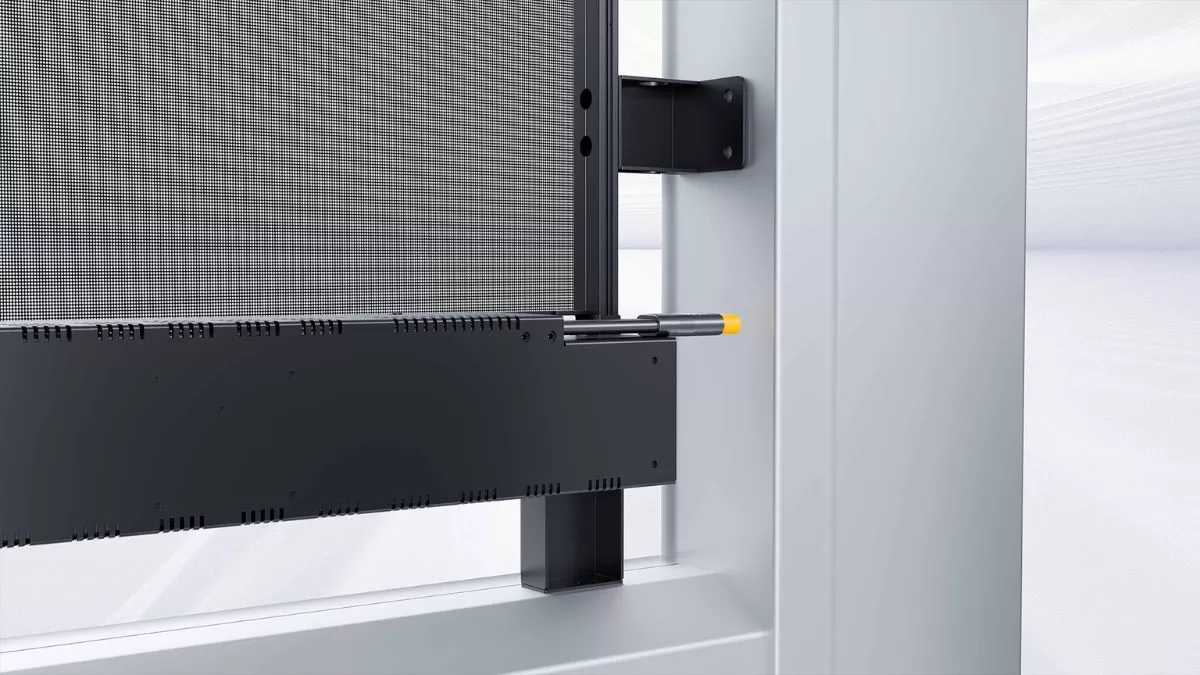

Cabinet mounting method
Fixed installation:Pre-drilled mounting holes on cabinet.
Secured to structural steel frame with self-tapping screws via connecting plates.
Specification parameters
| Model | S3-1000*1000 | S6-1000*1000 | S10-1000*1000 |
| LED Specification | 2121 | 2121 | 2727 |
| Pixel Pitch (mm) (horizontal/vertical) | 3.91-3.91 | 6.25-6.25 | 10.0-10.0 |
| Pixel Density (dot/m²) | 65536 | 25600 | 10000 |
| Transparency Rate | 92% | 95% | 95% |
| Display Dimension(mm) (w*h) | 1000*1000 | 1000*1000 | 960*1000 |
| Profile Dimension (mm)(w*h) | 1000*1000 | 1000*1000 | 960*1000 |
| Resolution (dot) (w*h) | 256*256 | 160*160 | 96*100 |
| Brightness(cd/m²) | ≥3000（White Body） | ≥5000（White Body） | ≥7000（White Body） |
| Maximum Power Consumption (w/m) | 865 | 865 | 800 |
| Average Power Consumption (w/m²) | 330 | 330 | 300 |
| Weight(Kg/pcs) | 6 | 6 | 8 |
| Color Temperature(K) | 3000~10000 | 3000~10000 | 3000~10000 |
| Scanning Mode | Static Driving (Single Pixel Single Control) | Static Driving (Single Pixel Single Control) | Static Driving (Single Pixel Single Control) |
| Frame Rate（Hz） | 60~120 | 60~120 | 60~120 |
| Encapsulation Type | Light Board & Driving Board Integrated | Light Board & Driving Board Integrated | Light Board & Driving Board Integrated |
| Lifespan | ≥ 100,000.00 hours | ≥ 100,000.00 hours | ≥ 100,000.00 hours |
| Pixel Configuration | 16bit | 16bit | 16bit |
| Input Voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| Working Voltage for Module | DC4.2V ±0.2V | DC4.2V ±0.2V | DC4.2V ±0.2V |
| Working Temperature | Temperature -20℃ ~50℃ | Temperature -20℃ ~50℃ | Temperature -20℃ ~50℃ |
| Working Humidity | Humidity 20%RH ~ 85%RH (Without Condensation) | Humidity 20%RH ~ 85%RH (Without Condensation) | Humidity 20%RH ~ 85%RH (Without Condensation) |
| Storage Temperature | Temperature -20℃ ~60℃ | Temperature -20℃ ~60℃ | Temperature -20℃ ~60℃ |
| Storage Humidity | Humidity 10%RH ~ 85%RH (Without Condensation) | Humidity 10%RH ~ 85%RH (Without Condensation) | Humidity 10%RH ~ 85%RH (Without Condensation) |
| Protection Degree | IP20 | IP20 | IP20 |
| Installation Method | Fixed Installation、Hanging Up | Fixed Installation、Hanging Up | Fixed Installation、Hanging Up |
| Installation Environment | Indoor | Indoor | Indoor |
| Packing Way | Pearl Cotton+Wooden Box/Flight Case | Pearl Cotton+Wooden Box/Flight Case | Pearl Cotton+Wooden Box/Flight Case |
| Maintenance Method | Back-side Service Access | Back-side Service Access | Back-side Service Access |
| Module Packing Specification (16pcs per box)(mm) | Single Cabinet Packaging | Single Cabinet Packaging | Single Cabinet Packaging |
| Power Box Packing Specification (30pcs per box)(mm) | L1000*W960*H55mm | L1000*W960*H55mm | L1000*W960*H55mm |
| Statement: The relevant parameters in the table are subject to real-time update, and the data is for reference only. Upgrade will be made without further notice. | |||
